Meterloc

  • Medium Duty

  • 37kg Breaking Strain

  • Flexible

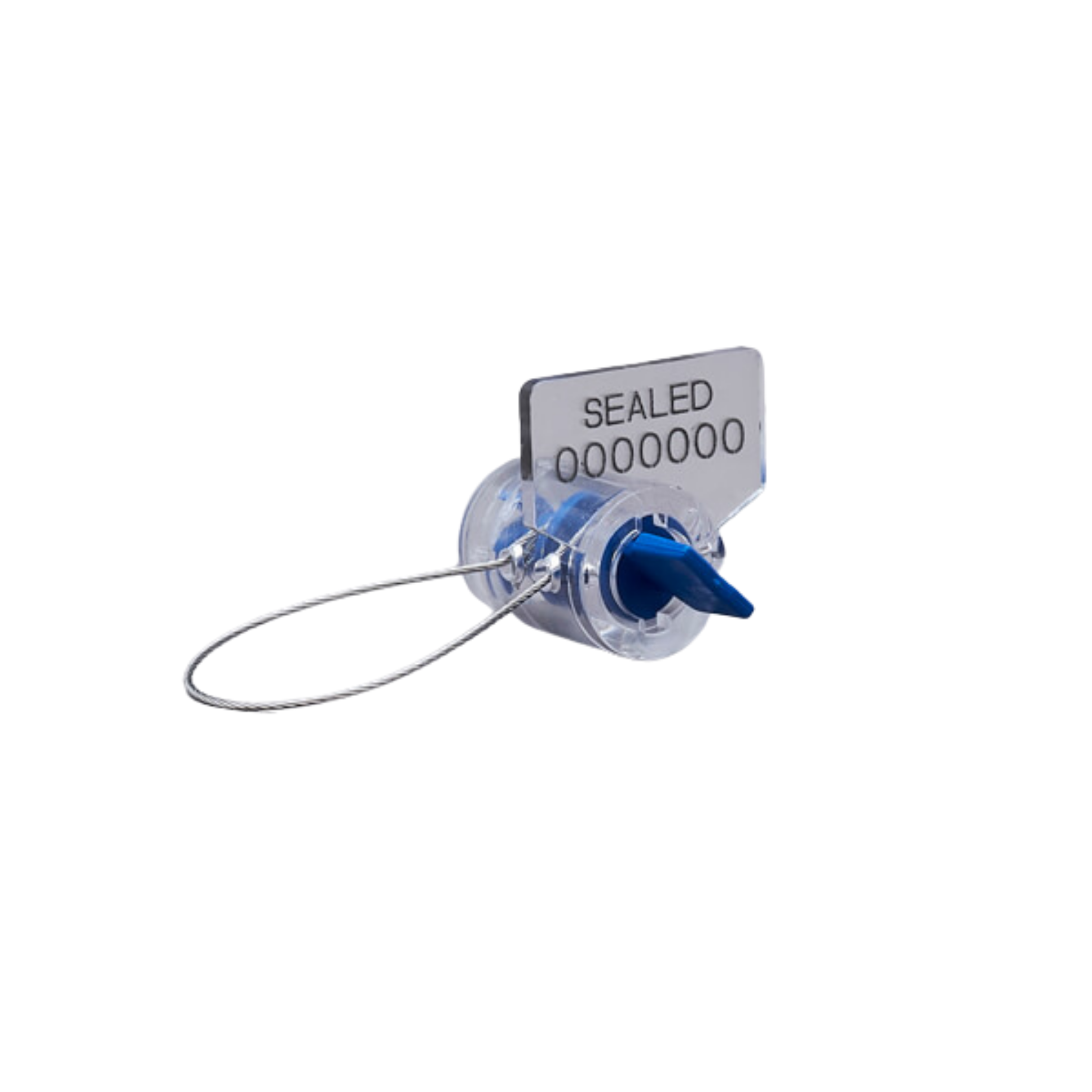

The Talisman Meterloc is a very flexible wire seal for meters, utility or otherwise, comprising a two piece plastic body and a wire or thin cable, which can be supplied with a variable length, to suit customer requirements.

Wire or cable is secured at one end by inserting into the sealing housing and rotating the inner barrel until the wire or cable is secure; after threading the wire or cable round or through the part to be secured, the free end of the wire or cable is inserted into the second aperture in the sealing housing and the inner barrel is rotated again to ensure final sealing.

The seal body is transparent, as standard, but can have a white pad printed on the tag, allowing a bar coded serial number.

Sealing wire can be stainless, galvanised or plastic coated, to protect against environmental conditions.

The seal is light to medium duty and may require cutters to remove.

Suitable for operating temperatures from -40 to +120degrees Celsius.

We are also able to supply various sealing wires on rolls – please contact for further information.

Get a Quote
Category:

Dimensions

Meterloc dimensions

Technical Data

Applications

Meters, measuring machines, security boxes, gaming machines, etc

Material

  • Body: Polycarbonate
  • Barrell: Polyacetal

Average Breaking Strain

37kg

Packaging

Single seals in bags of 100, in cartons of 1,000 or 5,000

Marking

  • Laser printing
  • Consecutively numbered as standard.
  • Optional customer name / logo
  • Bar coded serial numbers can be laser printed on the tag

Colours

Standard colours – yellow, red and blue Other colours may be available on request

Shipping Specification

Carton Dimensions:
1,000 seals: 400 x 380 x 150mm
5,000 seals: 400 x 600 x 350

Carton Weight:
1,000 seals: 4.0kg
5,000 seals: 20kg

Data Sheet

Download “Meterloc-1.pdf”

Meterloc-1.pdf – Downloaded 343 times – 194.73 KB
