Dimensions
| PRODUCT CODE | DIMENSIONS – mm | |||||
|---|---|---|---|---|---|---|
| TOTAL LENGTH TOL | STEM LENGTH SL | WORKING LENGTH WL | TAG WIDTH TW | TAG LENGTH TL | STRAP DIAMETER SD | |
| Maxiloc S | 290 | 30 | 210 | 21 | 60 | 3.7 |
| Maxiloc L | 360 | 30 | 280 | 21 | 60 | 3.7 |
| Maxiloc XL | 490 | 35 | 390 | 21 | 65 | 3.7 |
Maxiloc
Heavy Duty
High Breaking Strain
Customisable

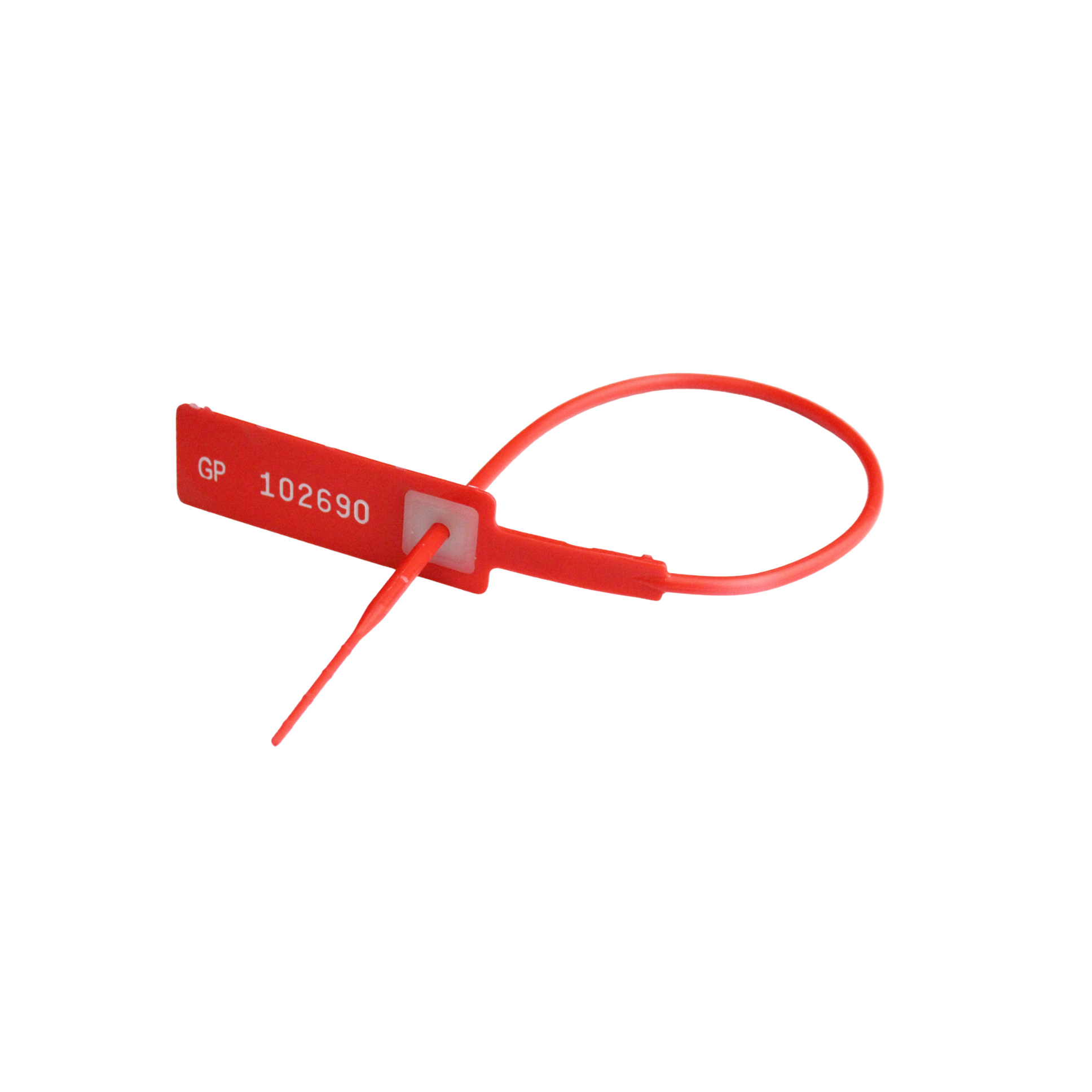

The Maxiloc is a heavy-duty, pull-tight seal, manufactured from polypropylene, with a metal locking insert to ensure positive sealing.
The seal has a 3.7mm diameter smooth strap, which makes it very user-friendly.
Removal of the seal will require cutters
Technical Data
Applications
Mail bags, courier bags, tanker valves, heavy duty bags, milk tankers, etc.
Material
- Body: Polyamide
- Locking Insert: Steel
Average Breaking Strain
Available upon request
Packaging
Mats of 10 in cartons of 1,000
Marking
- Laser, hot foil or thermal printing
- Consecutively numbered as standard
- Optional customer name / logo
- Bar coded serial numbers can be laser printed on the tag
Colours
- Standard colours – yellow, blue, green and red
- Other colours may be available on request
Shipping Specification
- Maxiloc S: 240 x 310 x 480mm x 5kg
- Maxiloc L: 240 x 370 x 460mm x 6kg
- Maxiloc XL: 240 x 500 x 470mm x 7kg
