Dimensions
| PRODUCT CODE | DIMENSIONS – mm | ||||
|---|---|---|---|---|---|
| STRAP LENGTH SL | OPERATING LENGTH OL | STRAP WIDTH SW | TAG LENGTH TL | TAG WIDTH TW | |
| Easiloc EL200 | 200 | 152 | 5 | 47 | 19.5 |
| Easiloc EL250 | 250 | 200 | 5 | 47 | 19.5 |
| Easiloc EL300 | 300 | 248 | 5 | 47 | 19.5 |
| Easiloc EL350 | 350 | 296 | 5 | 47 | 19.5 |
Easiloc
Tamper-evident
4 Lengths 200-350mm
23-25kg Breaking Strain

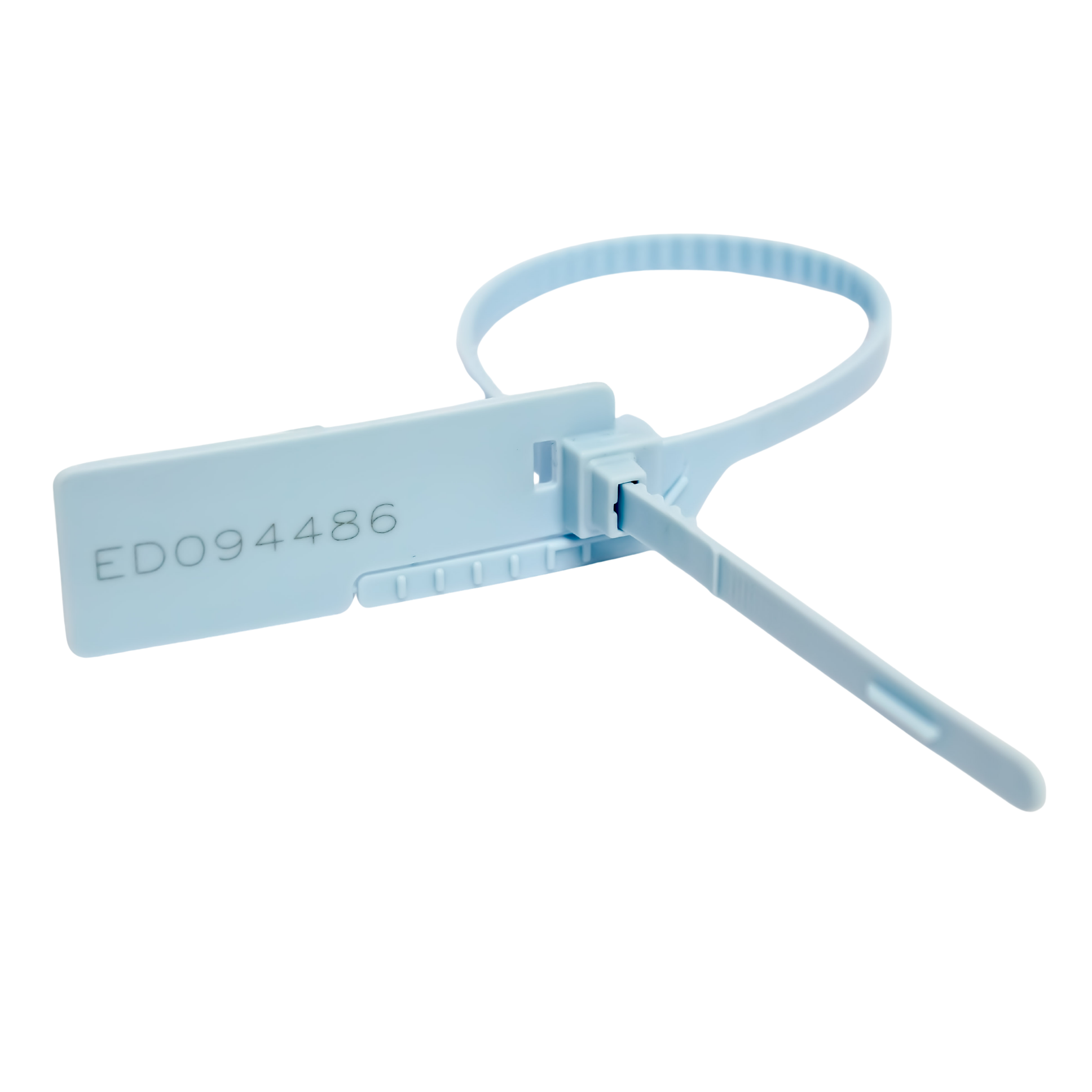

Manufactured by Talisman in Great Malvern. The Talisman Easiloc EL range of pull tight seals are manufactured from polypropylene, and are available with strap lengths of 200, 250, 300 and 350mm.
A tear off feature is included in the seal tag, which allows it to be removed without the need for cutting tools. This enhances health and safety requirements by removing the need for cutting tools and eliminates the cost of these tools.
A rib is moulded on the reverse side of the strap to ensure correct entry when applying the seal.
A return loop catch is included just above the seal locking head, which allows excess strap to be tucked away, improving health and safety requirements and can also be used as a label carrier.
Technical Data
Applications
Security sealing bags, sacks, tote box lids, roll cages and more.
Material
Polypropylene
Average Breaking Strain
- EL200 – 23kgf
- EL250 – 24kgf
- EL300 – 24kgf
- EL350 – 25kgf
Packaging
Mats of 10 in cartons of 500
Marking
- Laser printing
- Standard product has a sequential serial number
- 2 lines of additional text available
- Optional logos and barcoding
Colours
Standard colours – red, green, blue and yellow
Non-standard colours may be available on request
Shipping Specification
Carton dimensions: 412 x 250 x 205mm
